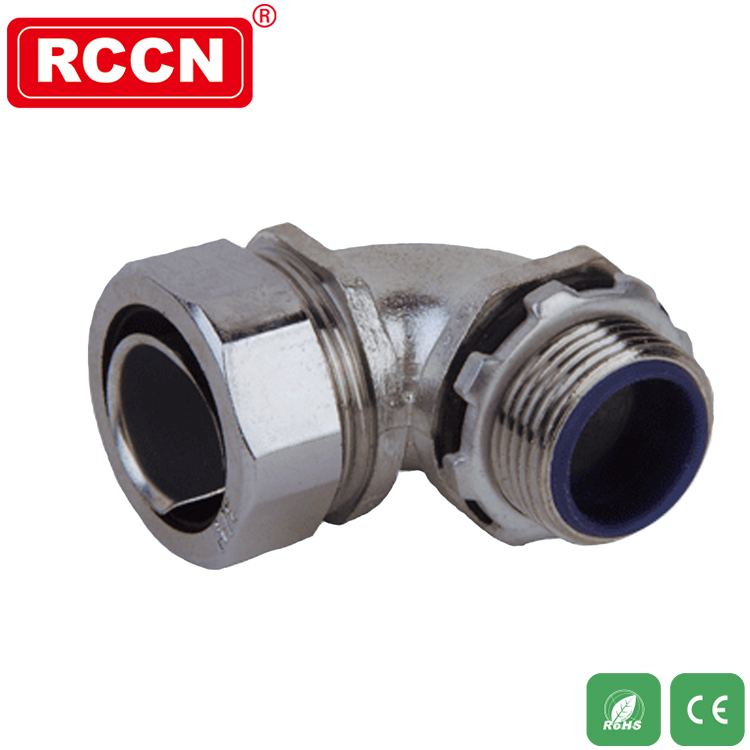

不锈钢直角接头,直角金属接头,不锈钢接头

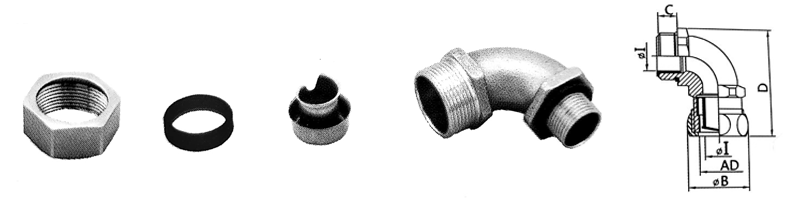

型号 Item No	φI mm	型号 Item No	φI mm	螺纹规格 Thread	适配软管 Fits to tubing size	φB mm	C mm	D mm	扳手尺寸SW mm	包装单位 std.pkg pcs
USW/USWP-M接头公制螺纹 Metric thread
USW	6.5	USWP	6.0	M12/M14/M16	AD10	19	8	33	17	5
USW	10.0	USWP	8.5	M14/M16/M18	AD14	24	9	43	21	25
USW	12.5	USWP	11.5	M18/M20/M22	AD17/AD19	28	10	55	25	25
USW	16.5	USWP	15.5	M20/M22/M25/M27	AD21	32.5	10	56	29	20
USW	21.5	USWP	20.5	M25/M27/M30/M32	AD27	39	14	73	34	20
USW	29.5	USWP	27.5	M32/M36/M40/M42	AD36	48	14	90	43	10
USW	38.0	USWP	36.5	M40/M42/M48/M50	AD45	58	14	105	55	10
USW/USWP-PG接头德制PG螺纹 PG thread
USW	6.5	USWP	6.0	PG07/PG09	AD10	19	8	33	17	25
USW	10.0	USWP	8.5	PG09/PG11	AD14	24	9	43	21	25
USW	12.5	USWP	11.5	PG11/PG13.5	AD17/AD19	28	10	55	25	20
USW	16.5	USWP	15.5	PG13.5/PG16	AD21	32.5	10	56	29	20
USW	21.5	USWP	20.5	PG16/PG21	AD27	39	14	73	34	10
USW	29.5	USWP	27.5	PG21/PG29	AD36	48	14	90	43	10
USW	38.0	USWP	36.5	PG29/PG36	AD45	58	14	10	55	5
USW/USWP-G接头英制螺纹 English thread
USW	6.5	USWP	6.0	G1/4"/G3/8"	AD10	19	8	33	17	25
USW	10.0	USWP	8.5	G3/8"	AD14	24	9	43	21	25
USW	12.5	USWP	11.5	G3/8"G1/2"	AD17/AD19	28	10	55	25	20
USW	16.5	USWP	15.5	G1/2"/G3/4"	AD21	32.5	10	56	29	20
USW	21.5	USWP	20.5	G3/4"	AD27	39	14	73	34	10
USW	29.5	USWP	27.5	G1"/G1 1/4"	AD36	48	14	90	43	10
USW	38.0	USWP	36.5	G1 1/4"G1 1/2"	AD45	58	14	10	55	5
