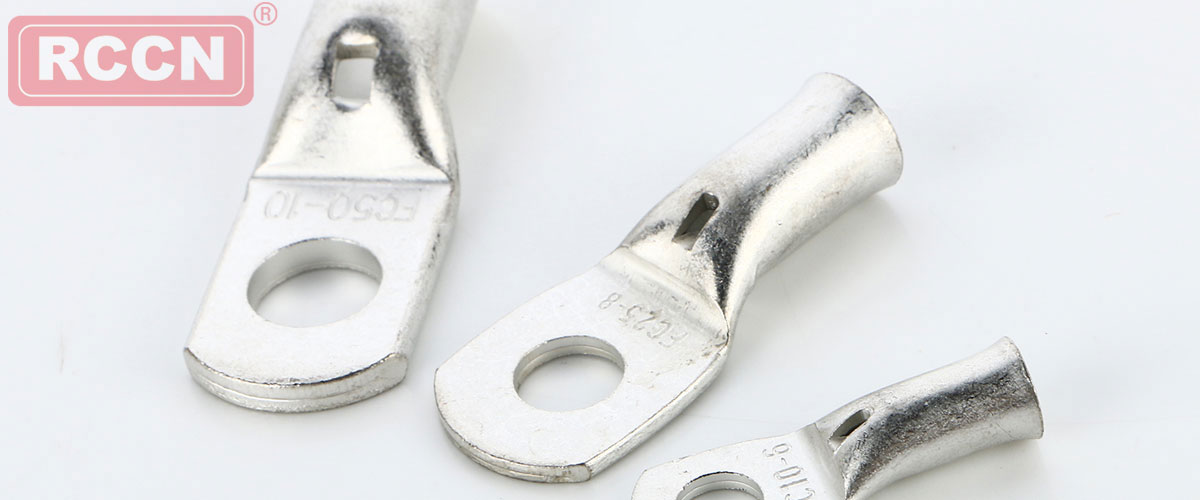

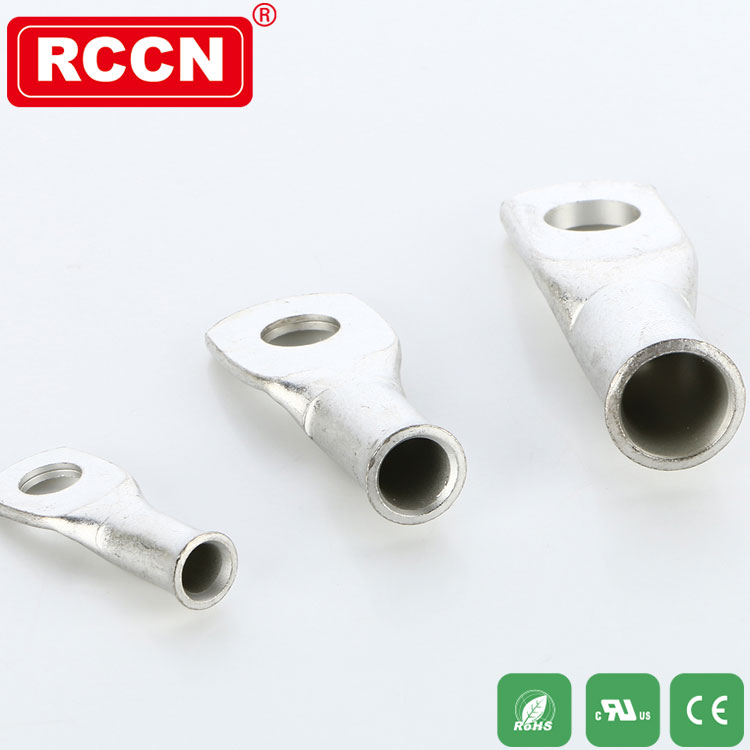

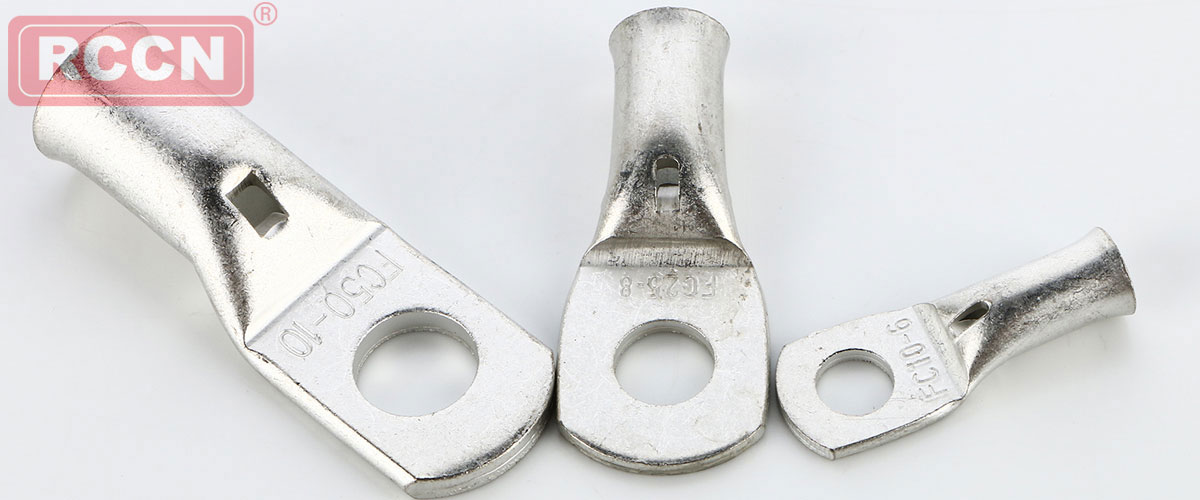

接线端子,冷压端子,铜管端子,喇叭口铜管端子

铜管端子,喇叭口铜管端子,线鼻子

产品材质:接线端子采用优质紫铜制成,导电性良好
产品特点:采用优质亚光电镀,防锈时间大大加长,无锋利部位；配套日成端子钳即可压紧电线,接线美观,
国际认证:欧盟RoHS环保认证,欧洲CE认证.
产品特性:品质优良,压紧后不断裂松开,-40度耐热至150度正常使用.
使用方法:将电线剥开外皮,穿入端子后铜管

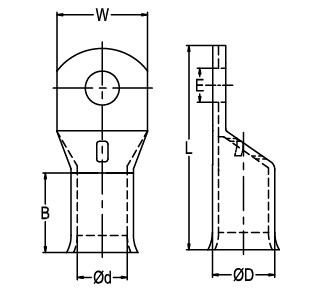

型号 Item No.	E	φD	φd	W	B	L
FC10-5	5.3	6.8	4.3	12	12	30.5
FC10-6	6.5	6.8	4.3	12	12	30.5
FC10-8	8.5	6.8	4.3	15	12	37
FC10-10	10.5	6.8	4.3	16	12	41
FC10-12	13	6.8	4.3	19	12	44
FC16-5	5.3	8	5.3	12	14	33.3
FC16-6	6.5	8	5.3	12	14	33.3
FC16-8	8.5	8	5.3	16	14	37.5
FC16-10	10.5	8	5.3	16	14	41.5
FC16-12	13	8	5.3	19	14	44
FC25-5	5.3	9.5	6.6	13	15	36.3
FC25-6	6.5	9.5	6.6	13	15	36.3
FC25-8	8.5	9.5	6.6	18	15	42
FC25-10	10.5	9.5	6.6	18	15	46
FC25-12	13	9.5	6.6	18	15	48
FC25-14	15	9.5	6.6	20	15	52.5
FC35-5	5.3	11	7.9	15	17	39.5
FC35-6	6.5	11	7.9	15	17	39.5
FC35-8	8.5	11	7.9	17	17	44
FC35-10	10.5	11	7.9	17	17	49
FC35-12	13	11	7.9	19	17	51
FC35-14	15	11	7.9	21	17	53.5
FC50-6	6.5	12.5	9.2	18	19	42.5
FC50-8	8.5	12.5	9.2	18	19	47
FC50-10	10.5	12.5	9.2	18	19	52
FC50-12	13	12.5	9.2	19	19	54
FC50-14	15	12.5	9.2	21	19	57.5
FC50-16	17	12.5	9.2	26	19	61
FC70-6	6.5	15	11	21	21	51
FC70-8	8.5	15	11	21	21	51
FC70-10	10.5	15	11	21	21	55
FC70-12	13	15	11	22	21	59
FC70-14	15	15	11	23	21	62.5
FC70-16	17	15	11	28	21	66
FC70-20	21	15	11	30	21	72
FC95-8	8.5	17	13.1	25	25	56
FC95-10	10.5	17	13.1	25	25	60
FC95-12	13	17	13.1	25	25	62
FC95-14	15	17	13.1	25	25	66.5
FC95-16	17	17	13.1	25	25	70
FC95-20	21	17	13.1	30	25	76
FC120-8	8.5	19	14.5	28	26	64
FC120-10	10.5	19	14.5	28	26	64
FC120-12	13	19	14.5	28	26	66
FC120-14	15	19	14.5	28	26	69.5
FC120-16	17	19	14.5	28	26	72
FC150-10	10.5	21	16.2	30	30	71
FC150-12	13	21	16.2	30	30	73
FC150-14	15	21	16.2	30	30	73
FC150-16	17	21	16.2	30	30	75
FC185-12	13	23	18	33.5	32	81
FC185-14	15	23	18	33.5	32	85
FC185-16	17	23	18	33.5	32	87
FC185-20	21	23	18	33.5	32	91
FC240-10	10.5	26	20.6	38	35	93.5
FC240-12	13	26	20.6	38	35	93.5
FC240-14	15	26	20.6	38	35	93.5
FC240-16	17	26	20.6	38	35	93.5
FC240-20	21	26	20.6	38	35	93.5
FC300-12	13	28	23	41	44	96
FC300-14	15	28	23	41	44	102
FC300-16	17	28	23	41	44	102
FC300-20	21	28	23	41	44	106
FC400-12	13	32	26	46.5	44	115
FC400-14	15	32	26	46.5	44	115
FC400-16	17	32	26	46.5	44	115
FC400-20	21	32	26	46.5	44	118
