| 型 号 Item No. |

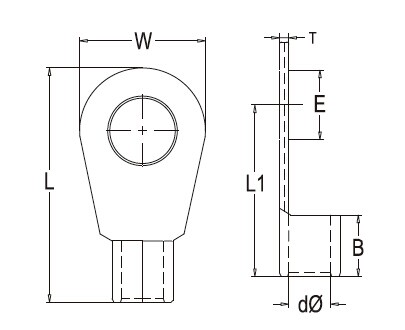

AWG/MCM | mm2 | Eφ | dφ | W | B | L1 | T | L |
| DIN-R0.5-2 | 26-22 | 0.2-0.5 | 2.2 | 1.0 | 5.0 | 4.0 | 10.00 | 0.5 | 12.5 |
| DIN-R0.5-2.5 | 26-22 | 0.2-0.5 | 2.7 | 1.0 | 5.0 | 4.0 | 10.00 | 0.5 | 12.5 |
| DIN-R0.5-3 | 26-22 | 0.2-0.5 | 3.2 | 1.0 | 5.0 | 4.0 | 10.00 | 0.5 | 12.5 |
| DIN-R0.5-3.5 | 26-22 | 0.2-0.5 | 3.7 | 1.0 | 6.0 | 4.0 | 12.00 | 0.5 | 15.0 |
| DIN-R0.5-4 | 26-22 | 0.2-0.5 | 4.3 | 1.0 | 6.5 | 4.0 | 12.00 | 0.5 | 15.3 |
| DIN-R0.5-5 | 26-22 | 0.2-0.5 | 5.3 | 1.0 | 8.0 | 4.0 | 12.00 | 0.5 | 16.0 |
| DIN-R1-2.5 | 22-16 | 0.5-1.5 | 2.7 | 1.6 | 6.0 | 5.0 | 11.00 | 0.8 | 14.0 |
| DIN-R1-3 | 22-16 | 0.5-1.5 | 3.2 | 1.6 | 6.0 | 5.0 | 11.00 | 0.8 | 14.0 |
| DIN-R1-3.5 | 22-16 | 0.5-1.5 | 3.7 | 1.6 | 6.0 | 5.0 | 11.00 | 0.8 | 14.0 |
| DIN-R1-4 | 22-16 | 0.5-1.5 | 4.3 | 1.6 | 8.0 | 5.0 | 12.00 | 0.8 | 16.0 |
| DIN-R1-5 | 22-16 | 0.5-1.5 | 5.3 | 1.6 | 10.0 | 5.0 | 13.00 | 0.8 | 18.0 |
| DIN-R2.5-3 | 16-14 | 1.5-2.5 | 3.2 | 2.3 | 6.0 | 5.0 | 11.00 | 0.8 | 14.0 |
| DIN-R2.5-3.5 | 16-14 | 1.5-2.5 | 3.7 | 2.3 | 6.0 | 5.0 | 11.00 | 0.8 | 14.0 |
| DIN-R2.5-4 | 16-14 | 1.5-2.5 | 4.3 | 2.3 | 8.0 | 5.0 | 12.00 | 0.8 | 16.0 |
| DIN-R2.5-5 | 16-14 | 1.5-2.5 | 5.3 | 2.3 | 10.0 | 5.0 | 14.00 | 0.8 | 19.0 |
| DIN-R2.5-6 | 16-14 | 1.5-2.5 | 6.5 | 2.3 | 11.0 | 5.0 | 16.00 | 0.8 | 21.5 |
| DIN-R2.5-8 | 16-14 | 1.5-2.5 | 8.4 | 2.3 | 14.0 | 5.0 | 17.00 | 0.8 | 24.0 |
| DIN-R6-4 | 12-10 | 4-6 | 4.3 | 3.6 | 8.0 | 6.0 | 14.00 | 1.0 | 18.0 |
| DIN-R6-5 | 12-10 | 4-6 | 5.3 | 3.6 | 10.0 | 6.0 | 15.00 | 1.0 | 20.0 |
| DIN-R6-6 | 12-10 | 4-6 | 6.5 | 3.6 | 11.0 | 6.0 | 16.00 | 1.0 | 21.5 |
| DIN-R6-8 | 12-10 | 4-6 | 8.4 | 3.6 | 14.0 | 6.0 | 19.00 | 1.0 | 26.0 |
| DIN-R6-10 | 12-10 | 4-6 | 10.5 | 3.6 | 18.0 | 6.0 | 21.00 | 1.0 | 30.0 |
| DIN-R10-5 | 8 | 10 | 5.3 | 4.5 | 10.0 | 8.0 | 16.00 | 1.1 | 21.0 |
| DIN-R10-6 | 8 | 10 | 6.5 | 4.5 | 11.0 | 8.0 | 17.00 | 1.1 | 22.5 |
| DIN-R10-8 | 8 | 10 | 8.4 | 4.5 | 14.0 | 8.0 | 20.00 | 1.1 | 27.0 |
| DIN-R10-10 | 8 | 10 | 10.5 | 4.5 | 18.0 | 8.0 | 21.00 | 1.1 | 30.0 |
| DIN-R10-12 | 8 | 10 | 13.0 | 4.5 | 22.0 | 8.0 | 23.00 | 1.1 | 34.0 |
| DIN-R16-5 | 6 | 16 | 5.3 | 5.8 | 11.0 | 10.0 | 20.00 | 1.2 | 25.5 |
| DIN-R16-6 | 6 | 16 | 6.5 | 5.8 | 11.0 | 10.0 | 20.00 | 1.2 | 25.5 |
| DIN-R16-8 | 6 | 16 | 8.4 | 5.8 | 14.0 | 10.0 | 22.00 | 1.2 | 29.0 |
| DIN-R16-10 | 6 | 16 | 10.5 | 5.8 | 18.0 | 10.0 | 24.00 | 1.2 | 33.0 |
| DIN-R16-12 | 6 | 16 | 13.0 | 5.8 | 22.0 | 10.0 | 26.00 | 1.2 | 37.0 |
| DIN-R25-5 | 4 | 25 | 5.3 | 7.5 | 12.0 | 11.0 | 25.00 | 1.5 | 31.0 |
| DIN-R25-6 | 4 | 25 | 6.5 | 7.5 | 12.0 | 11.0 | 25.00 | 1.5 | 31.0 |
| DIN-R25-8 | 4 | 25 | 8.4 | 7.5 | 16.0 | 11.0 | 25.00 | 1.5 | 33.0 |
| DIN-R25-10 | 4 | 25 | 10.5 | 7.5 | 18.0 | 11.0 | 26.00 | 1.5 | 35.0 |
| DIN-R25-12 | 4 | 25 | 13.0 | 7.5 | 22.0 | 11.0 | 31.00 | 1.5 | 42.0 |
| DIN-R25-16 | 4 | 25 | 17.0 | 7.5 | 28.0 | 11.0 | 35.00 | 1.5 | 49.0 |
| DIN-R35-6 | 2 | 35 | 6.5 | 9.0 | 15.0 | 12.0 | 26.00 | 1.6 | 33.5 |
| DIN-R35-8 | 2 | 35 | 8.4 | 9.0 | 16.0 | 12.0 | 26.00 | 1.6 | 34.0 |
| DIN-R35-10 | 2 | 35 | 10.5 | 9.0 | 18.0 | 12.0 | 27.00 | 1.6 | 36.0 |
| DIN-R35-12 | 2 | 35 | 13.0 | 9.0 | 22.0 | 12.0 | 31.00 | 1.6 | 42.0 |
| DIN-R35-16 | 2 | 35 | 17.0 | 9.0 | 28.0 | 12.0 | 36.00 | 1.6 | 50.0 |
| DIN-R50-6 | 1/0 | 50 | 6.5 | 11.0 | 18.0 | 16.0 | 34.00 | 1.8 | 43.0 |
| DIN-R50-8 | 1/0 | 50 | 8.4 | 11.0 | 18.0 | 16.0 | 34.00 | 1.8 | 43.0 |
| DIN-R50-10 | 1/0 | 50 | 10.5 | 11.0 | 18.0 | 16.0 | 34.00 | 1.8 | 43.0 |
| DIN-R50-12 | 1/0 | 50 | 13.0 | 11.0 | 22.0 | 16.0 | 36.00 | 1.8 | 47.0 |
| DIN-R50-16 | 1/0 | 50 | 17.0 | 11.0 | 28.0 | 16.0 | 40.00 | 1.8 | 54.0 |
| DIN-R70-6 | 2/0 | 70 | 6.5 | 13.0 | 22.0 | 18.0 | 38.00 | 2.0 | 49.0 |
| DIN-R70-8 | 2/0 | 70 | 8.4 | 13.0 | 22.0 | 18.0 | 38.00 | 2.0 | 49.0 |
| DIN-R70-10 | 2/0 | 70 | 10.5 | 13.0 | 22.0 | 18.0 | 38.00 | 2.0 | 49.0 |
| DIN-R70-12 | 2/0 | 70 | 13.0 | 13.0 | 22.0 | 18.0 | 38.00 | 2.0 | 49.0 |
| DIN-R70-16 | 2/0 | 70 | 17.0 | 13.0 | 28.0 | 18.0 | 42.00 | 2.0 | 56.0 |
| DIN-R95-8 | 3/0 | 95 | 8.4 | 15.0 | 24.0 | 20.0 | 42.00 | 2.5 | 54.0 |
| DIN-R95-10 | 3/0 | 95 | 10.5 | 15.0 | 24.0 | 20.0 | 42.00 | 2.5 | 54.0 |
| DIN-R95-12 | 3/0 | 95 | 13.0 | 15.0 | 24.0 | 20.0 | 42.00 | 2.5 | 54.0 |
| DIN-R95-16 | 3/0 | 95 | 17.0 | 15.0 | 28.0 | 20.0 | 44.00 | 2.5 | 58.0 |
| DIN-R120-8 | 4/00 | 120 | 8.4 | 16.5 | 24.0 | 22.0 | 44.00 | 3.0 | 56.0 |
| DIN-R120-10 | 4/00 | 120 | 10.5 | 16.5 | 24.0 | 22.0 | 44.00 | 3.0 | 56.0 |
| DIN-R120-12 | 4/00 | 120 | 13.0 | 16.5 | 24.0 | 22.0 | 44.00 | 3.0 | 56.0 |
| DIN-R120-16 | 4/00 | 120 | 17.0 | 16.5 | 28.0 | 22.0 | 48.00 | 3.0 | 62.0 |
| DIN-R150-10 | 250/300 | 150 | 10.5 | 19.0 | 30.0 | 24.0 | 50.00 | 3.2 | 65.0 |
| DIN-R150-12 | 250/300 | 150 | 13.0 | 19.0 | 30.0 | 24.0 | 50.00 | 3.2 | 65.0 |
| DIN-R150-16 | 250/300 | 150 | 17.0 | 19.0 | 30.0 | 24.0 | 50.00 | 3.2 | 65.0 |
| DIN-R185-10 | 300/350 | 185 | 10.5 | 21.0 | 36.0 | 28.0 | 50.00 | 3.5 | 68.0 |
| DIN-R185-12 | 300/350 | 185 | 13.0 | 21.0 | 36.0 | 28.0 | 50.00 | 3.5 | 68.0 |
| DIN-R185-16 | 300/350 | 185 | 17.0 | 21.0 | 36.0 | 28.0 | 50.00 | 3.5 | 68.0 |
| DIN-R240-10 | 400/450 | 240 | 10.5 | 23.5 | 38.0 | 32.0 | 56.00 | 4.0 | 75.0 |
| DIN-R240-12 | 400/450 | 240 | 13.0 | 23.5 | 38.0 | 32.0 | 56.00 | 4.0 | 75.0 |
| DIN-R240-16 | 400/450 | 240 | 17.0 | 23.5 | 38.0 | 32.0 | 56.00 | 4.0 | 75.0 |
