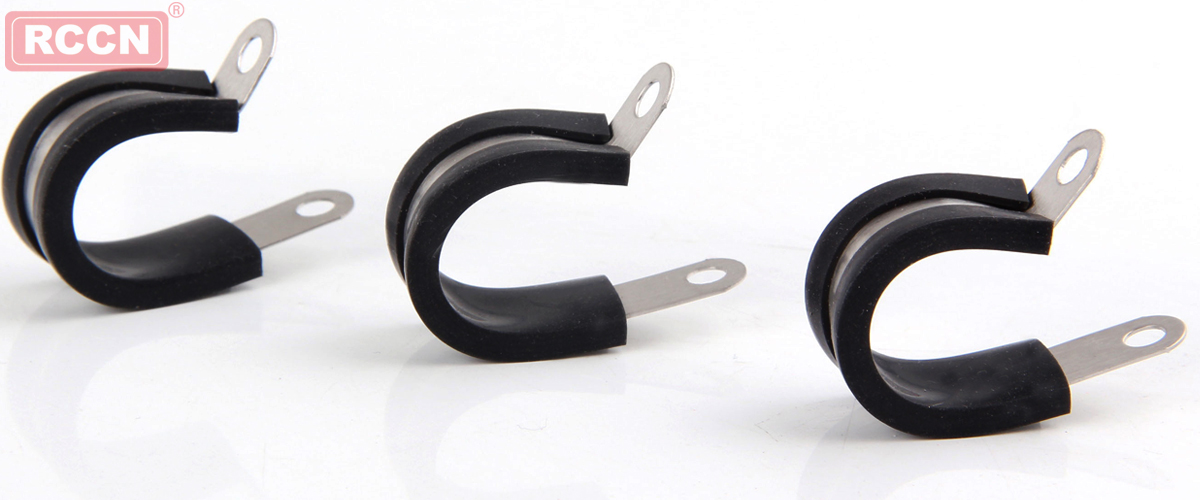

日成不锈钢软管紧固夹 SKM

产品材质:采用304不锈钢包附耐老化橡胶
工作温度:-40°C至150°C。

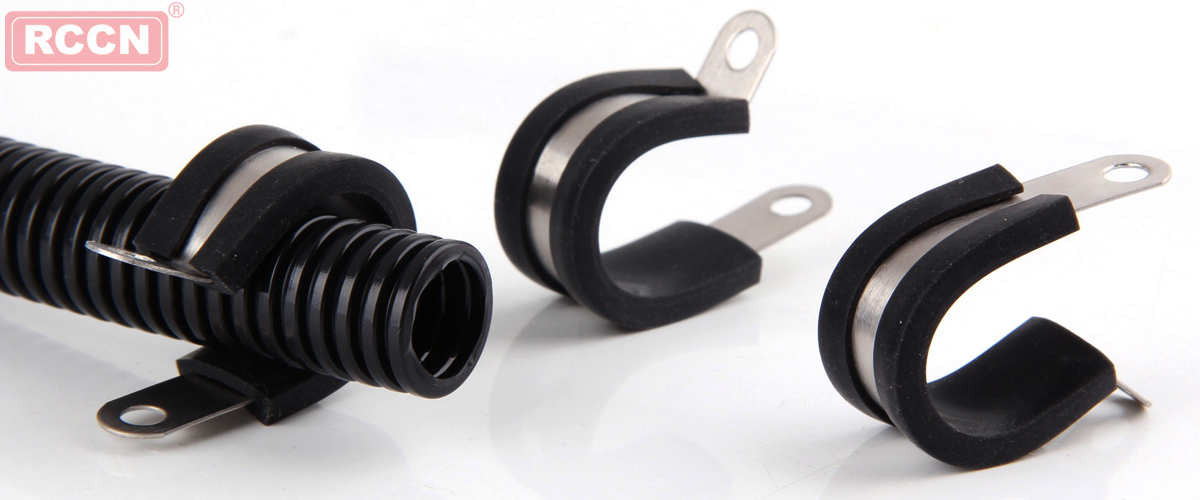

产品特性:软管或线缆等固定。
说明:本品特适合户外,高底温环境使用。采用加厚型电镀和耐老化橡胶包,性能优
可根据要求开发其它规格,有起订量要求。

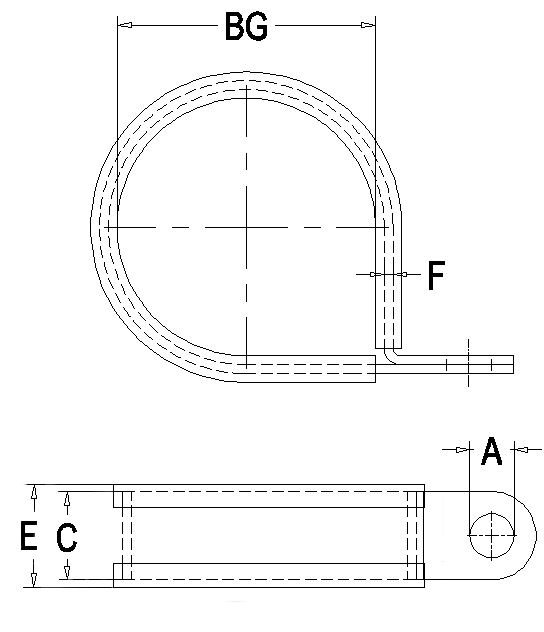

型号 Item No.	对应软管 BG/外径	螺丝孔 A	总宽度 E	金属宽度 C	厚度 F	包装 PACK
SKM/M4
SKM BG-07(M4)/304	BG-07/10mm	M4	14	9	0.5	50PCS
SKM BG-10(M4)/304	BG-10/13mm	M4	14	9	0.5
SKM BG-12(M4)/304	BG-12/15.8mm	M4	14	9	0.5
SKM BG-15(M4)/304	BG-15/18.5mm	M4	14	9	0.5
SKM BG-17(M4)/304	BG-17/21.2mm	M4	14	9	0.5
SKM BG-20(M4)/304	BG-20/25mm	M4	14	9	0.5	25PCS
SKM BG-23(M4)/304	BG-23/28.5mm	M4	14	9	0.5
SKM BG-25(M4)/304	BG-25/30.0mm	M4	14	9	0.5
SKM BG-29(M4)/304	BG-29/34.5mm	M4	14	9	0.5
SKM BG-36(M4)/304	BG-36/42.5mm	M4	14	9	0.5
SKM BG-48(M4)/304	BG-48/54.5mm	M4	14	9	0.5
SKM/M6
SKM BG-07(M6)/304	BG-07/10mm	M6	15	12	0.5	50PCS
SKM BG-10(M6)/304	BG-10/13mm	M6	15	12	0.5
SKM BG-12(M6)/304	BG-12/15.8mm	M6	15	12	0.5
SKM BG-15(M6)/304	BG-15/18.5mm	M6	15	12	0.5
SKM BG-17(M6)/304	BG-17/21.2mm	M6	15	12	0.5
SKM BG-20(M6)/304	BG-20/25.0mm	M6	15	12	0.5	25PCS
SKM BG-23(M6)/304	BG-23/28.5mm	M6	15	12	0.5
SKM BG-25(M6)/304	BG-25/30.0mm	M6	15	12	0.5
SKM BG-29(M6)/304	BG-29/34.5mm	M6	15	12	0.5
SKM BG-36(M6)/304	BG-36/42.5mm	M6	15	12	0.5
SKM BG-48(M6)/304	BG-48/54.5mm	M6	15	12	0.5
SKM/M6D
SKM BG-07(M6)/304	BG-07/10mm	M6	24.5	20	1.0	50PCS
SKM BG-10(M6)/304	BG-10/13mm	M6	24.5	20	1.0
SKM BG-12(M6)/304	BG-12/15.8mm	M6	24.5	20	1.0
SKM BG-15(M6)/304	BG-15/18.5mm	M6	24.5	20	1.0
SKM BG-17(M6)/304	BG-17/21.2mm	M6	24.5	20	1.0
SKM BG-20(M6)/304	BG-20/25.0mm	M6	24.5	20	1.0	25PCS
SKM BG-23(M6)/304	BG-23/28.5mm	M6	24.5	20	1.0
SKM BG-25(M6)/304	BG-25/30.0mm	M6	24.5	20	1.0
SKM BG-29(M6)/304	BG-29/34.5mm	M6	24.5	20	1.0
SKM BG-36(M6)/304	BG-36/42.5mm	M6	24.5	20	1.0
SKM BG-48(M6)/304	BG-48/54.5mm	M6	24.5	20	1.0
SKM/M8
SKM BG-07(M8)/304	BG-07/10mm	M8	24.5	20	1.0	50PCS
SKM BG-10(M8)/304	BG-10/13mm	M8	24.5	20	1.0
SKM BG-12(M8)/304	BG-12/15.8mm	M8	24.5	20	1.0
SKM BG-15(M8)/304	BG-15/18.5mm	M8	24.5	20	1.0
SKM BG-17(M8)/304	BG-17/21.2mm	M8	24.5	20	1.0
SKM BG-20(M8)/304	BG-20/25.0mm	M8	24.5	20	1.0	25PCS
SKM BG-23(M8)/304	BG-23/28.5mm	M8	24.5	20	1.0
SKM BG-25(M8)/304	BG-25/30.0mm	M8	24.5	20	1.0
SKM BG-29(M8)/304	BG-29/34.5mm	M8	24.5	20	1.0
SKM BG-36(M8)/304	BG-36/42.5mm	M8	24.5	20	1.0
SKM BG-48(M8)/304	BG-48/54..5mm	M8	24.5	20	1.0
SKM/M10
SKM BG-07(M10)/304	BG-07/10mm	M10	30	25	1.0	50PCS
SKM BG-10(M10)/304	BG-10/13mm	M10	30	25	1.0
SKM BG-12(M10)/304	BG-12/15.8mm	M10	30	25	1.0
SKM BG-15(M10)/304	BG-15/18.5mm	M10	30	25	1.0
SKM BG-17(M10)/304	BG-17/21.2mm	M10	30	25	1.0
SKM BG-20(M10)/304	BG-20/25.0mm	M10	30	25	1.0	25PCS
SKM BG-23(M10)/304	BG-23/28.5mm	M10	30	25	1.0
SKM BG-25(M10)/304	BG-25/30.0mm	M10	30	25	1.0
SKM BG-29(M10)/304	BG-29/34.5mm	M10	30	25	1.0
SKM BG-36(M10)/304	BG-36/42.5mm	M10	30	25	1.0
SKM BG-48(M10)/304	BG-48/54.5mm	M10	30	25	1.0
SKM BG-70(M10)/304	BG-67/70.0mm	M10	30	25	1.0	5PCS
